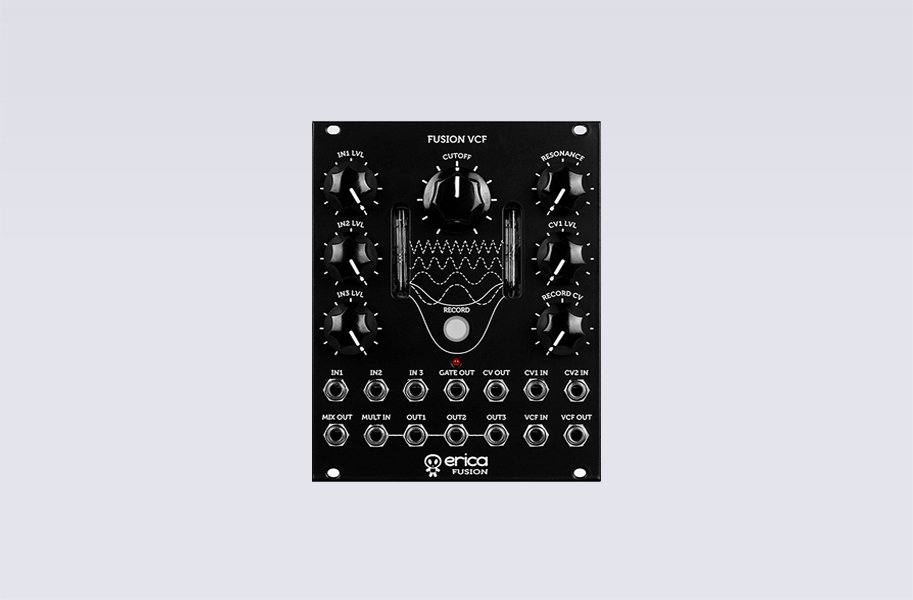

Fusion VCF V3
The Fusion VCF3 is resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility, the independent audio mixer and buffered multiple is incorporated in the module, and, most importantly – a CV recorder that records motion of the potentiometer, so you can design advanced modulation patterns.
The Fusion VCF3 is resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility, the independent audio mixer and buffered multiple is incorporated in the module, and, most importantly – a CV recorder that records motion of the potentiometer, so you can design advanced modulation patterns.
The Fusion VCF3 is resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility, the independent audio mixer and buffered multiple is incorporated in the module, and, most importantly – a CV recorder that records motion of the potentiometer, so you can design advanced modulation patterns.
Features
Full analogue design
Vacuum tube and vactrol based filter circuit. Because of vactrol lag,
the VCF will not accept audio rate modulation, the maximum
modulation frequency is 10HzInput signal mixer with gain 2 for signal overdrive
Buffered multiple for splitting audio and CV signals
Potentiometer motion record unit with CV and gate outputs
Recorded CV multiplication and division
Technical Specifications:
Filter slope24dB/octAudio Input level10VptpCV input level-5V - +5VCV Output level0V - +5VPanel width20HPModule depth36mmPower consumption81mA@+12V, 76mA@-12V
