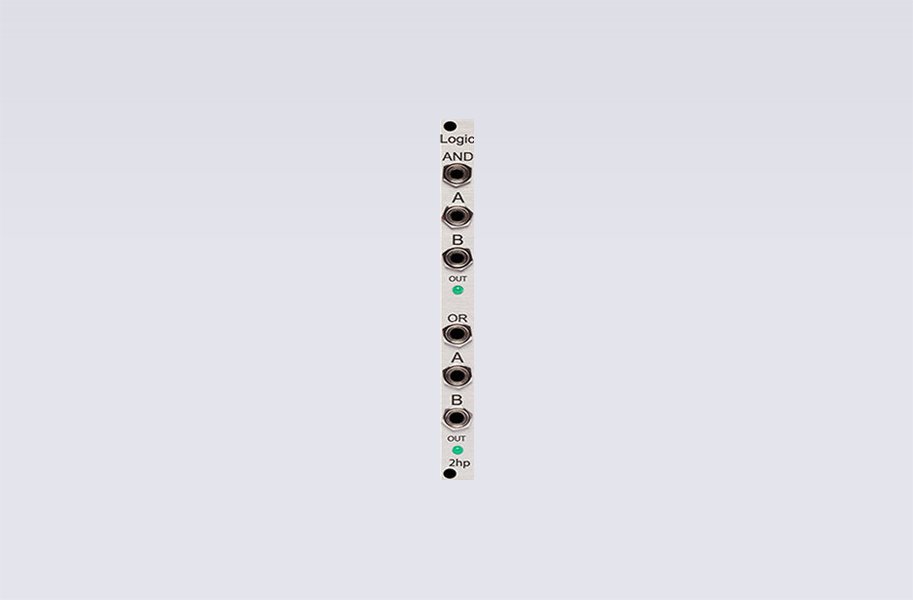

Logic

Logic is a 2 channel, boolean gate operator. It provides two unique logic operations: AND and OR. The AND Channel is useful for gating existing rhythmic events within a patch.

Conversely, The OR channel is well suited for mixing two timing events down to a single output, creating interesting polyrhythms and syncopations from existing gate signals.

Channel 1 normals to channel 2 if there is no cable present

• AND logic operations

• OR logic operations

• Max Power Consumption: 35 mA = +12V, 3 mA = -12V

• Skiff friendly
